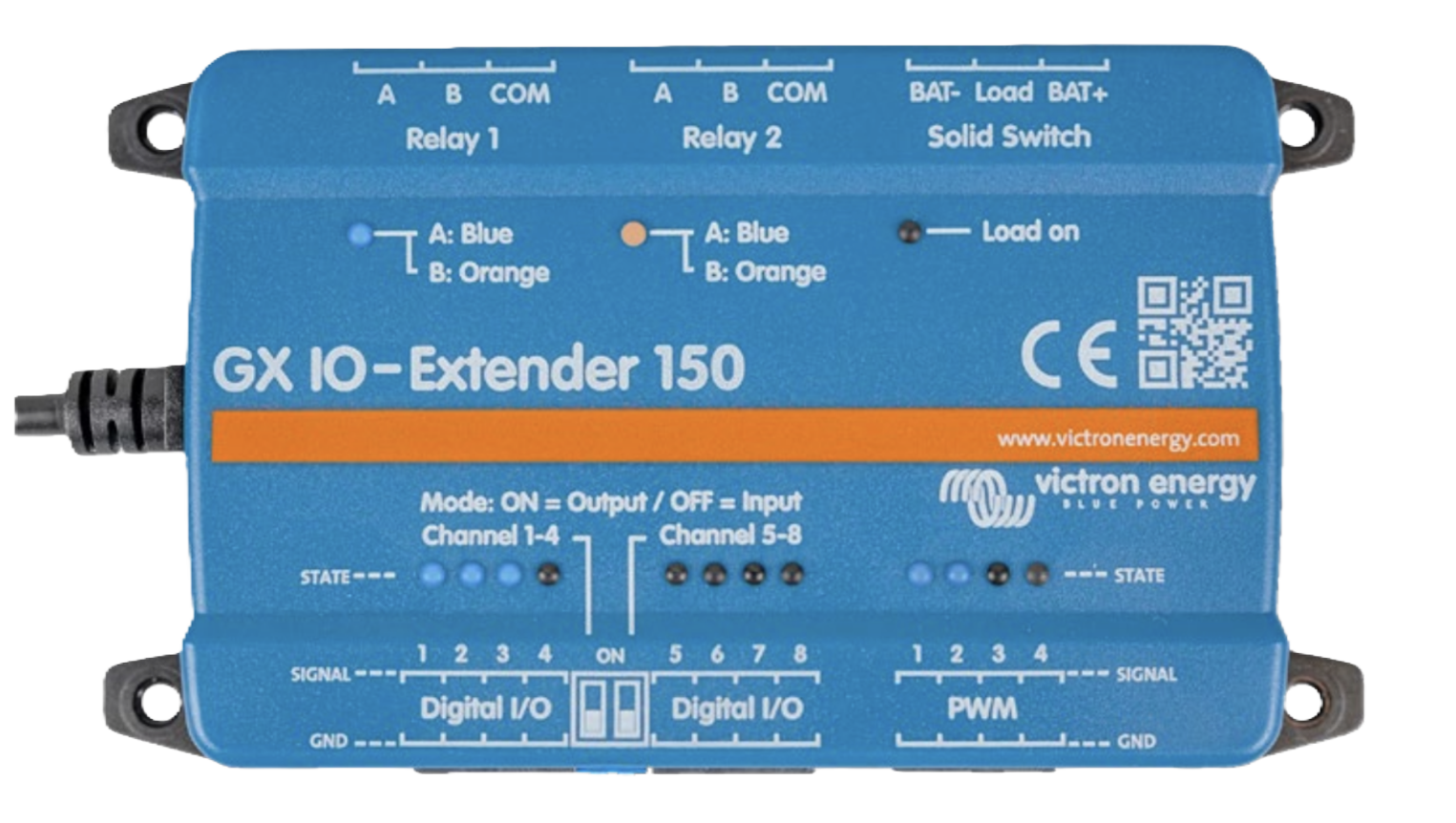

The new GX IO-Extender 150 is a compact solution to expand the number of inputs, outputs and relays on a GX device. It was a much-requested solution, offering a smaller and simpler alternative to installing an additional Cerbo GX.

The Extender is powered and controlled via a USB port on the GX-device and features easy-to-use spring-loaded terminals for quick and secure connections. Multiple GX IO-Extenders can be added to increase the connections even further.

Connections on the GX IO-Extender 150 include:

• 2 latching relays for switching low-power AC and DC signals. These relays retain their position even when power is lost.
• 1 solid-state switch for DC loads, up to 4 A.
• 8 configurable digital I/Os, which can be configured via DIP switches to act as 8 inputs, 8 outputs, or 4 inputs and 4 outputs.
• 1 four-channel PWM output for precise control applications.

Each connection has a dedicated LED indicator to show its current state, and for the PWM channel, intensity.

The GX IO-Extender 150 is fully supported in Venus OS Node-RED. Digital outputs and relays can be controlled locally from the new Switch pane on the GX device’s screen, or remotely via the VRM portal.

For more information, including the manual and datasheet, visit its product page.

And for a visual overview, watch this video.
